Create a TON Address Tracking Telegram Bot with dTON Webhook

Introduction​

Want to get updates on a TON address's activity? This guide will show you how to create a Telegram bot that can track on-chain activities on TON

We'll use an NFT auction tracker as an example, but the template can be easily adapted for other use cases.

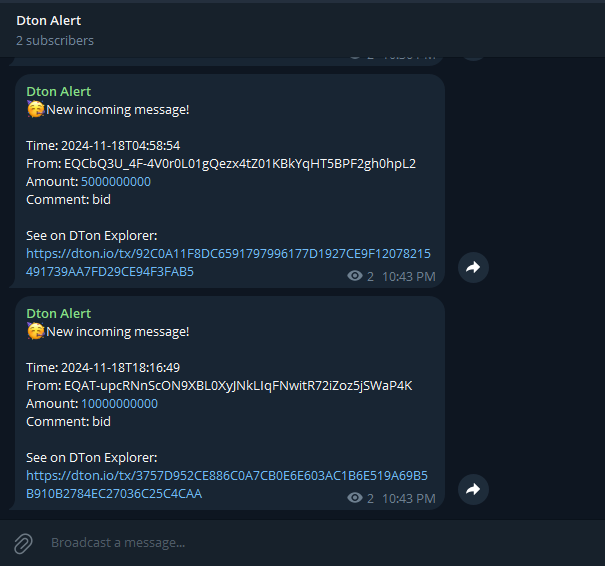

Here's an example of what our example bot will look like:

telegram_bot_tracking_incoming_message

Everytime there's a new incoming message to the NFT Auction address, we get notified via Telegram

Setting Up The Bot​

1. Create Telegram Bot using @botfather​

Create a new bot using /newbot command at @botfather account on Telegram

bot_father_create_bot

2. Create a Telegram Channel for the bot to send the notification​

telegram_channel

Invite the bot that's been created to the channel and make the bot as admin

3. Fork the repository​

Fork this Github repo: Telegram Notification Bot

Or, you can also clone and push to your account

Notice that there are three environment variables you need to set up later

BOT_TOKEN=
TELEGRAM_CHANNEL=

BOT_TOKEN is the token you get from @botfather after creating the bot TELEGRAM_CHANNEL is username of telegram channel created in point 2. Don't forget to put @ in front, such as @telegram_channel

4. Configure the environment variable and deploy using Deno Deploy​

  • Go to Deno Deploy

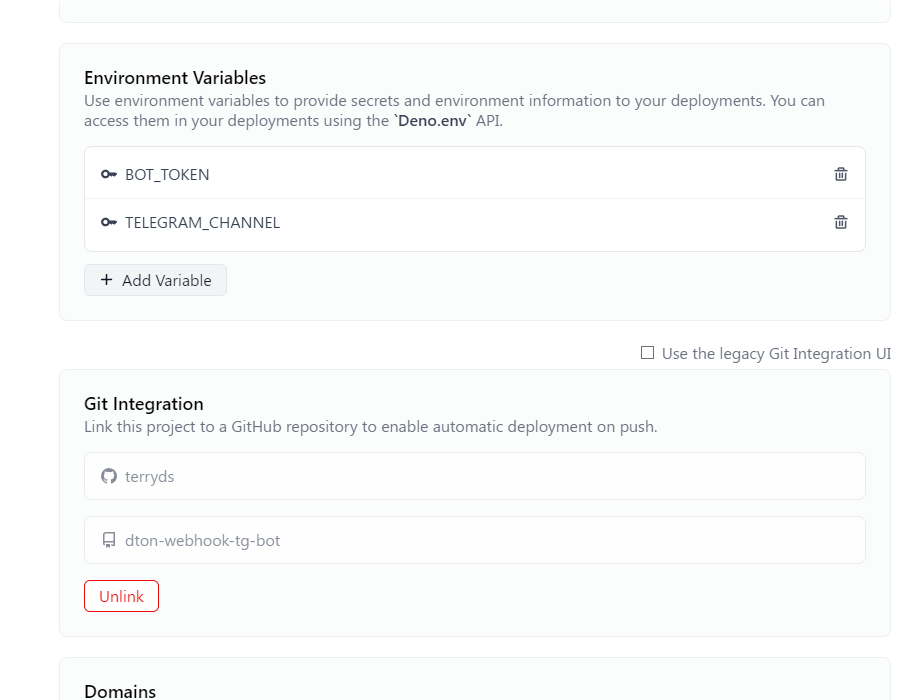

  • Set up the environment variable and connect your github alt text
  • Deploy

5. Set Telegram Webhook and check if the bot is working​

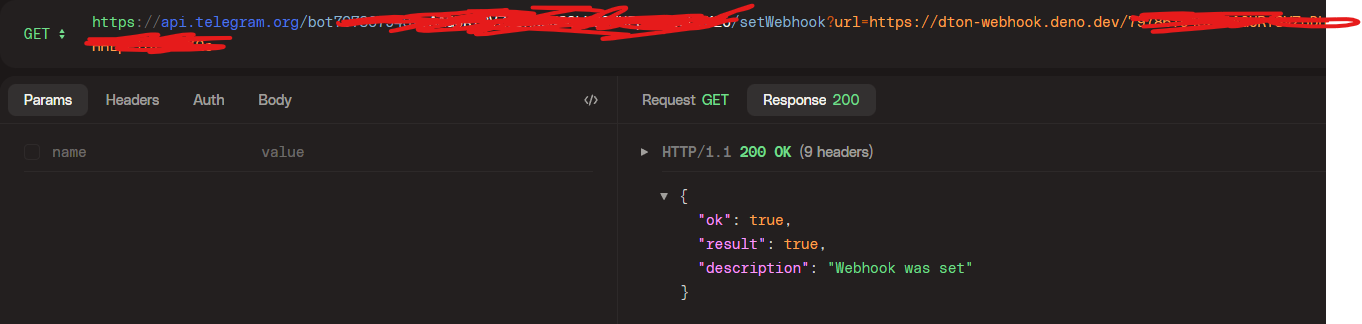

Connect your bot to the deployed endpoint https://api.telegram.org/bot<BOT_TOKEN>/setWebhook?url=https://<MY_SUBDOMAIN>.deno.dev/<BOT_TOKEN>

alt text

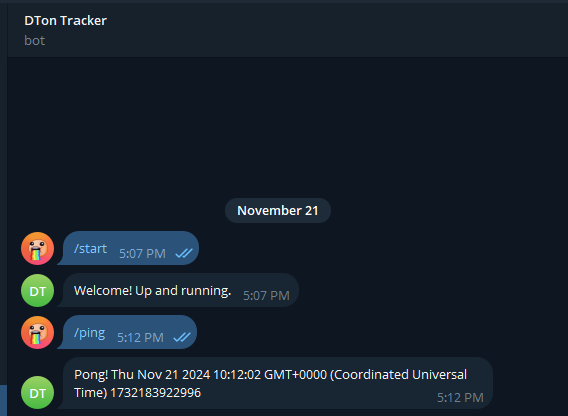

After webhook is successfully set, you can chat your telegram bot with /start or /ping

alt text

If the bot responds, it means you're good to go, you've correctly set up the bot.

Setting up DTON​

Subscribe to GraphQL Plan that supports Webhook​

  • Go to @dtontech_bot
  • Open the app
  • Purchase plan that supports Webhook

dton_plan

For example, I purchase "Omega" plan

Track NFT Bidding with DTon Webhook​

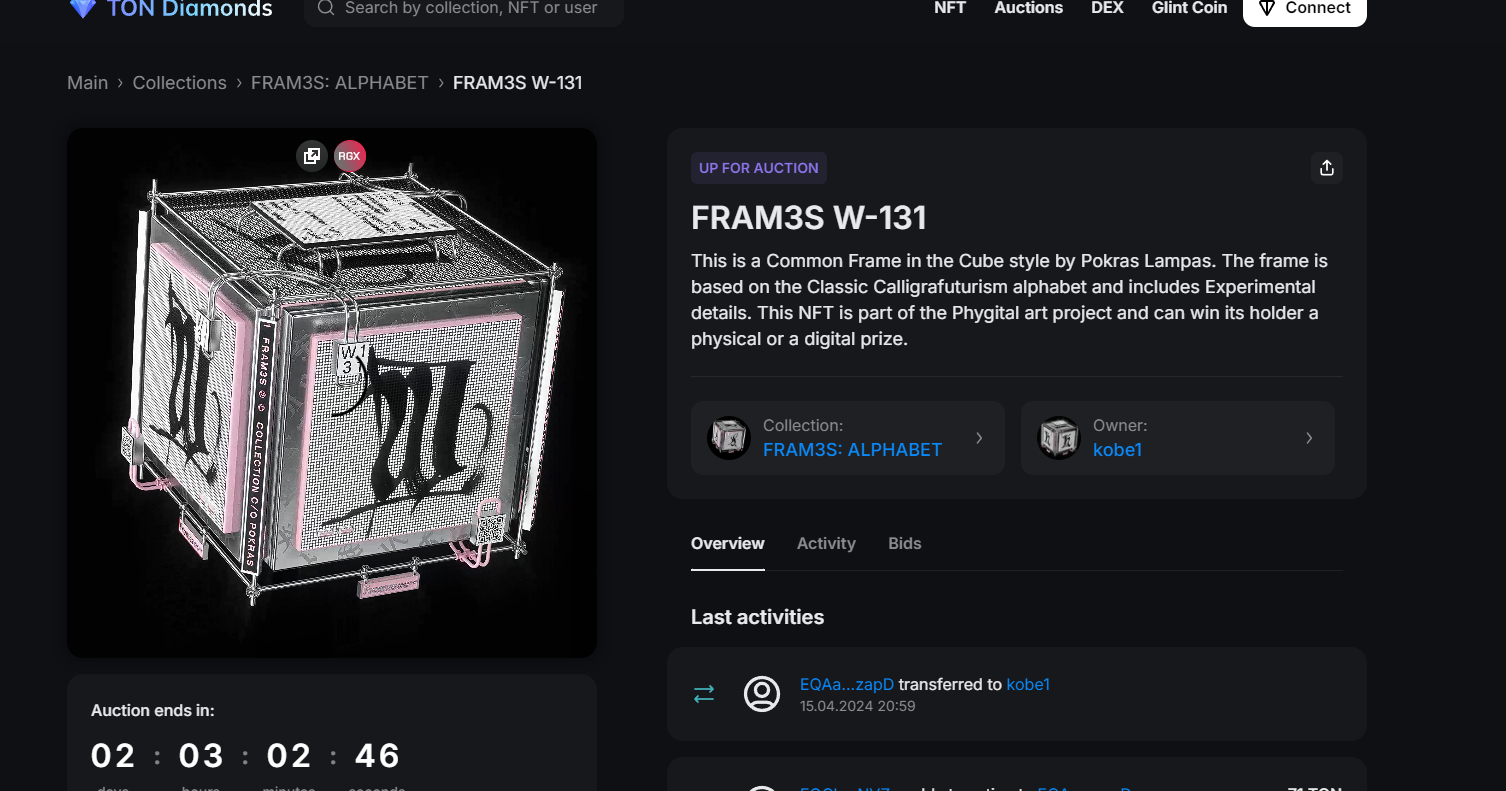

Let's say we want to track this NFT

alt text

We take note that the NFT's auction address is EQAXYZvT-oCUD21K7IAauNiKZPWsTcEiZ2SmLMmeiwV4R5kf

If there's any incoming message to that address, which means that there's activity (such as a new bid), we want to be notified using our Telegram bot.

So we need to register the webhook on DTon to listen to those events.

Register the webhook​

To create a webhook you need to send a profile_webhook_setup mutation request to DTon's GraphQL endpoint. You should authorize using your personal graphql key: https://dton.io/{your_key}/graphql .

Make sure that you use API key of your GraphQL Plan that you've just subscribed, not the Default one.

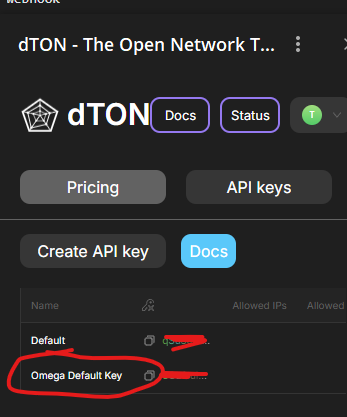

In my case, I'm using "Omega Default Key" omega key

After you get the api key, let's register the webhook using GraphQL API

https://dton.io/{your_key}/graphql

mutation {
  profile_webhook_setup(
    webhook_id: 1
    endpoint: {your_endpoint}/notify
    filters: {address__friendly_in: ["EQAXYZvT-oCUD21K7IAauNiKZPWsTcEiZ2SmLMmeiwV4R5kf"]}
    fields: ["hash","now","in_msg_src_addr_address_hex__friendly","in_msg_value_grams","in_msg_comment"]
  ) {
    success
    error_message
    webhook {
      webhook_id
      endpoint
      filters
      fields
    }
  }
}

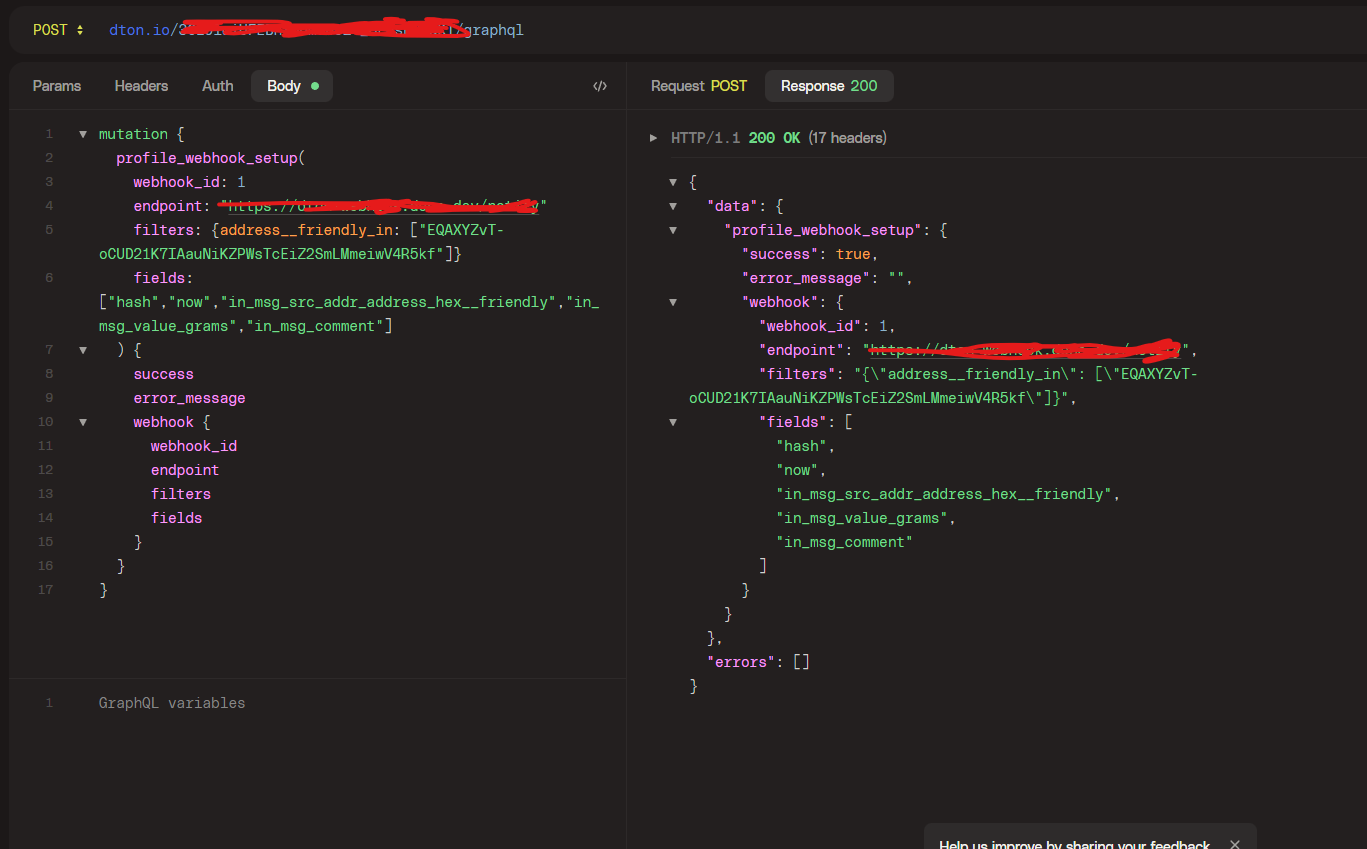

webhook call

Change {your_endpoint} with your deployed Deno deploy endpoint with '/notify' path just like what programmed in the bot.

We supply these fields:

  • hash : Transaction hash
  • now : The time of transaction
  • in_msg_src_addr_address_hex__friendly : The source address of the incoming transaction
  • in_msg_value_grams : Amount of grams in the incoming message
  • in_msg_comment : Incoming message comment, such as "bid" which means there's a new bid

Reference: https://docs.dton.io/webhooks

Voila!​

alt text

If you succeed, then congrats, you've just set up automated Telegram notification bot using DTon Webhook!

Everytime there's a new incoming message on that address, you'll get notified.

You can customize this template to basically any use case you can think of: tracking a wallet address, Jetton activity, or any other things on TON blockchain!

Github repository of Telegram Bot: https://github.com/terryds/dton-webhook-tg-bot

Author: Terry Djony
